XCCR Main body
consist of the robust Canister made of a marine grade hard anodized aluminum with
teflon coating or optionally made of Delrin.
The Canister has a mounted bottom,
which is designed simultaneously as a
spacer with a water trap. The bottom is
replaceable if damaged.
Canister is equipped with the industry
unique Quick Bayonet Lock for easy,
fast and safe mounting the X-head.
Canister is also equipped with the Backplate Adapter with compact multi-
outlet gas manifolds and two Quick Release Fasteners for easy attaching and
replacing the oxygen and diluent cylinders.
The Quick Release Fasteners provide very easy and secure attaching of the
cylinders to the canister.
The Backplate Adapter is made of stainless steel and
carries the two M8 bolts for attaching the Stand, BCD and Backplate with harnesses.
The M8 bolts can be replaced for longer ones in case of
use a thicker backplate or additional accessories.
The Oxygen Manifold
has 5 outlets and is equipped with an overpressure valve in case of
failure on the intermediate pressure of the 1st stage regulator.
The Oxygen manifold allows as well connecting an optional
off-board oxygen source via an additional LP hose with high
fow QC6 quick disconnect connector

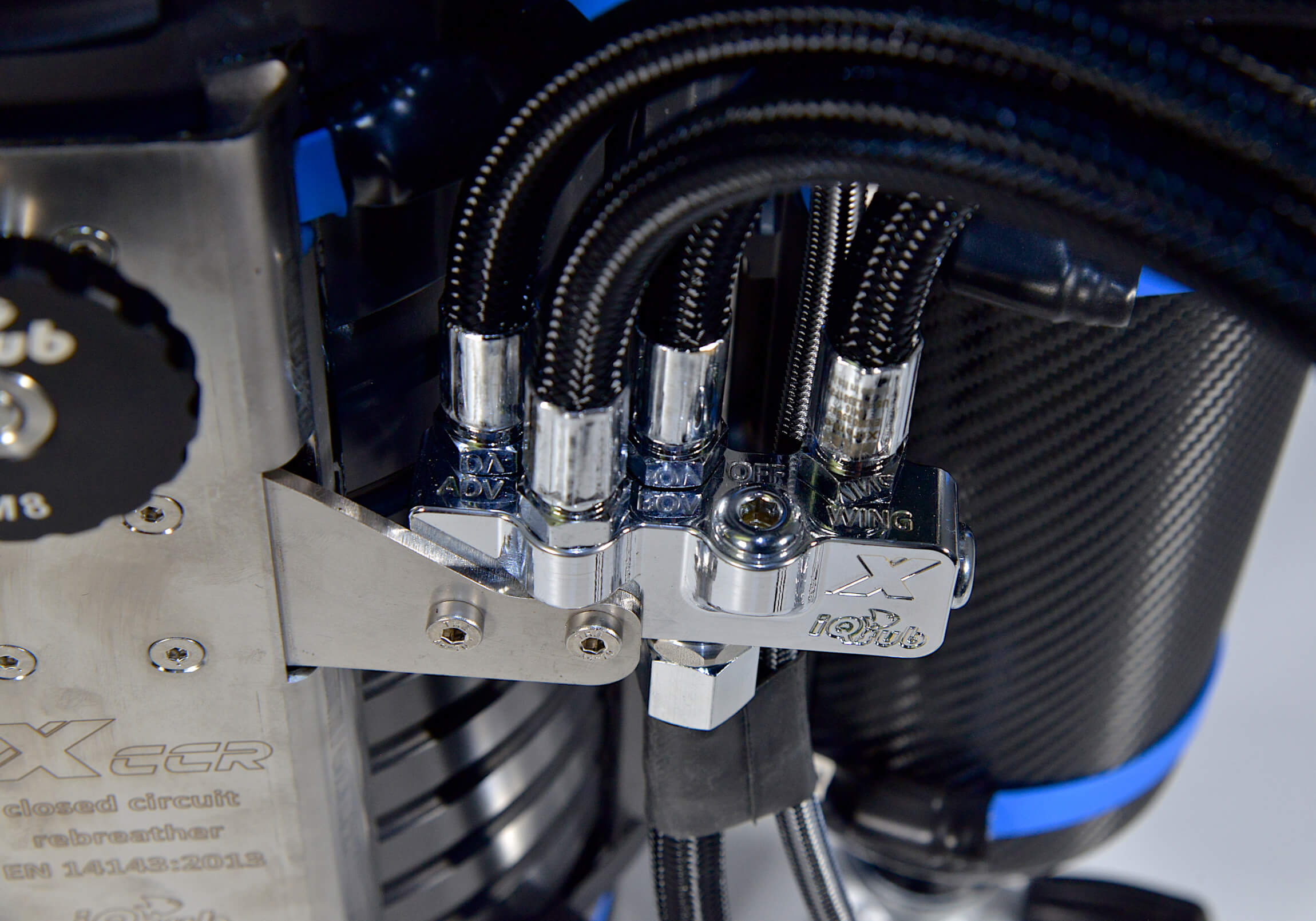

The Diluent Manifold has 8 outlets and
supplies LP hoses leading to the ADV, DIL Manual
Adding Valve, BOV’s 2nd stage regulator and
the BCD wing and allows as well connecting of
optional off-board gases via an additional LP
hose with high fow QC6 quick disconnect
connector.
The Full size Scrubber
Each XCCR unit is standardly equipped with a full size radial scrubber placed in the Canister.
The full size Radial Scrubber (H=267mm)
has capacity 3.2 kg / 7.1 lb of soda lime with minimal operating
time up to 6 hours even in extreme conditions like cold water
(4°C) and depths over 100m.
The XCCR scrubber consist of the finely perforated concentrical tubes
made of stainless steel with the robust bottom and top lid made of
Delrin. The white top ring reinforces and protects the outer perforated
tube
The Top lid is equipped with and an
easy to use bayonet lock and has a
self-packing feature – the spring
loaded plate ensuring sustained
compression of the soda lime to
protect against gas channeling
(bypassing the soda lime).
The top lid has integrated radial
handle for easy and safe removal of
the scrubber from the Canister
The Medium size Radial Scrubber (H=212mm)
is an optional scrubber with capacity 2,5 kg / 5,5 lb of soda lime
with minimal operating time up to 4,5 hours even in extreme
conditions.
The Medium size Scrubber is intended for use with the optional
HOBO Canister
Gas Cylinders
The XCCR is standardly equipped with
3L / 232bar steel cylinders of black color with
a protection foil in carbon fiber design.
Optionally cylinders from 2L up to 7L
can be used with an XCCR.
The cylinders are equipped with Quick
Release Fasteners for easy attaching and
replacing the oxygen and diluent cylinders.
The Quick Release Fasteners provide very
easy, fast and secure attaching of the
cylinders to the canister.
1st stage Regulators
The XCCR is standardly equipped with Apeks 1st stage regulators.
At the Oxygen cylinder there is standardly used Apeks TEK3 Nitrox L M26x2.
At the Diluent cylinder there is standardly used Apeks TEK3 R G5/8″
At the XCCR BLACK edition there are used Apeks TUNGSTEN L M26x2 and Apeks TUNGSTEN R
G5/8”.
The both Oxygen and Diluent 1st stage regulators have to be setup in the original LP
pressure setting 9,5bar +/- 0,5bar.
The high pressures in the cylinders are fed from the 1st stage regulators via Mifex HP hoses
to the HP-sensors located in the X-head and HP readings are shown on the Primary Controller
display.
Backplate
is made of stainless steel 3mm with durable harnesses.
The back plate harnesses are fixed or optionally adjustable. The harnesses are equipped with
D-rings on the both shoulder straps, the belt and on the crotch strap.
The Backplate is connected to the XCCR canister via backplate adapter with two M8 bolts and
secured by large custom shaped M8 nuts.
Optionally the 6mm backplate can be used.
Wing BCD
The XCCR uses a wing-type
buoyancy control device – BCD
with nominal buoyancy 200 N.
The BCD are made of a double
layer, the outer shell and the
inner bladder.
The outer shell is made of
Cordura fabric, provides
attachment to the XCCR unit and
protects the inner bladder.
The inner bladder is made of
Cordura 560 fabric with PU
coating and is accessible
through a zipper on the inner side
of the outer shell.
The BCD is equipped with a
standard manual inflating valve fed with gas via LP hose connected to the diluent
manifold.
The wing is fastened between the back plate and the backplate adapter by M8 screws.
With the XCCR it is also allowed the use another BCD Wing, which has a valid CE approval,
meets the requirements of EN 14143, has a minimum volume of 20 liters and the inflating
hose is located to the left.
XCCR Stand
is a popular and very useful accessories to the XCCR.
The Stand facilitates the handling and carrying of the XCCR unit,
provides stability when the unit stands alone and facilitates the
donning of the unit on the diver.
Underwater the stand reduces the load on the diver’s back and
allows easy attaching of bail-out stages and other equipment.
The Stand is made of stainless steel or optionally Titanium and is
equipped with a folding handle in an ergonomic shape.
The standard hight of the Stand platform is 80mm.
The hight of 120m or 140mm are optionally available.
